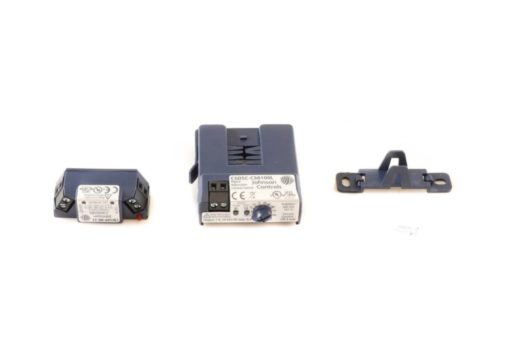

CSDSC-C50100L0 | CURR SW SELF CAL CLMP; CURR SW SELF CAL CLMP 0.50A-100A | Johnson Controls

CURR SW SELF CAL CLMP; CURR SW SELF CAL CLMP 0.50A-100A

The Current Switch Devices Self-Calibrating (CSDSC) Series of Current Switch Devices provide reliable verification of electrical equipment operation in a variety of applications, including fans and pumps. CSDSC current switch devices use a single-turn dial to select motor full load amps, eliminating the need for live calibration and significantly reducing installation time compared to traditional current switches. CSDSC switches use full load amps instead of horsepower, eliminating the need for separate part numbers as a function of line voltage. CSDSC current switches are installed when the panel is de-energized. The ability to preset the sensor eliminates the need for Personal Protective Equipment (PPE) that is required by OSHA when working with a live panel. The fixed setpoint Current Switch Device for Electronically Commutated Motors (CSDECM) Series of Current Switch Devices feature a range of minimum turn-on options including 250 mA, 350 mA, and 500 mA. These options eliminate the possibility of a false reading. Even when idle, ECMs draw a small amount of current. Some fixed point sensors feature a minimum turn-on value within the vicinity of the ECM’s idle current, making them ineffective in distinguishing between on and off status.
