Get your Special Pricing!

Brand: Generic BACnet RouterSKU: CCN-1 BACNET

Web Price:

$510.18

Add 1 more to save 2%

Availability: IN STOCK

Orders over $999 ship FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Volume pricing — discount applies automatically at checkout

Quantity

Price Each

Additional Off

$499.98

$484.68

10+

$459.17

10%

25+

Call us for discounted pricing

Volume breaks above are automatic up to 25 units. Beyond that, our team quotes project pricing on this line every day — reach out before you order for a custom quote.

Call (847) 773-1023 Get a Quote

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 4pm CDT M-F

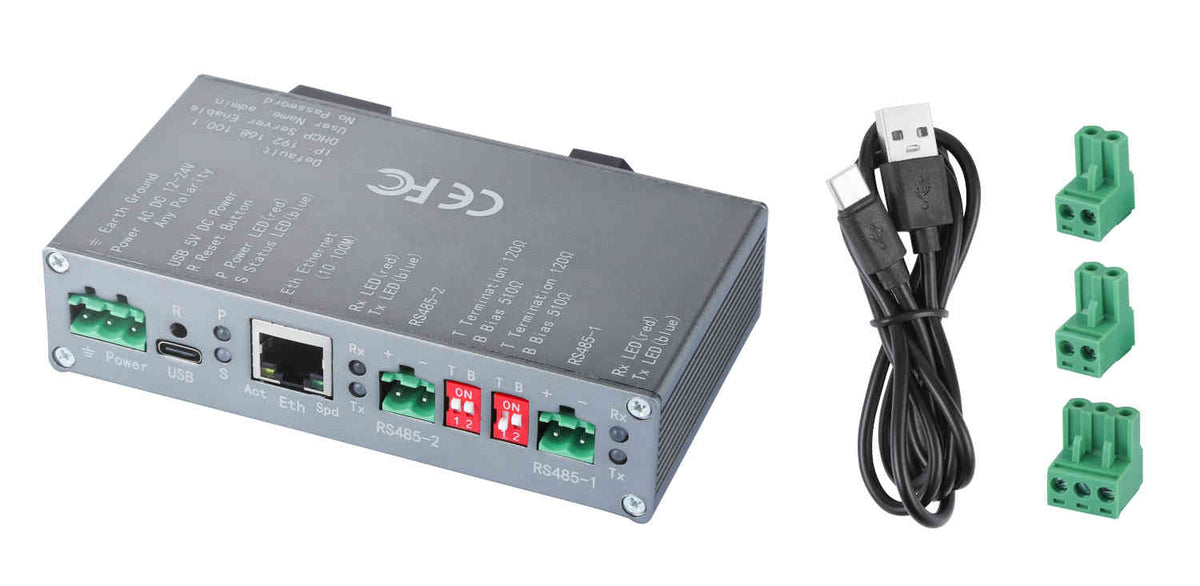

CCN-1 BACNET | Carrier CCN Gateway | CCN to BACnet/MSTP | Generic BACnet Router

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to CCN-1 BACNET

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Generic BACnet Router CCN-1 BACNET Documents

Activation Instructions More Info

Overview

Details for CCN-1 BACNET

CCN stands for Carrier Comfort Network, A proprietary communicating protocol used by Carrier Corp. Almost every chiller that Carrier sells today has CCN built in. If your Automation system needs to access the running data on a Carrier chiller, they will need a gateway to convert that data from CCN. Carrier has some gateway options, for example: 33cntran485; sim; ivu, but all of these are expensive and hard to configure.

Our CCN Gateway is designed to map the Carrier CCN protocol to Modbus/BACnet. However it also has some other advantages:

Our CCN Gateway is aim to map Carrier CCN protocol to Modbus/BACnet, it have some advantages:

Web UI, easy to configure.
Map up to 16 CCN devices.
No total map point limit.
Could map every points in STATUS/MAINTENANCE/SETPOINT tables.
User defined data update interval.

CCN Gateway is proven in the field to be compatible with Carrier chillers with the following digits in their serial number:19XL/XR/XRV 30RA/RB/RQ/HXC 30XA/XW/XQ 23XL 16DJ/DN/DE. We released version 1.0 on 2010, and have since upgraded to 1.2 on 2014. WE now present the more powerful version 2.0, We have hundreds projects and thousands of chillers running steadily for years.
