ZG-LF112 | LF crankarm adaptor kit (includes ZG-112). | Belimo
Overview
Details for ZG-LF112

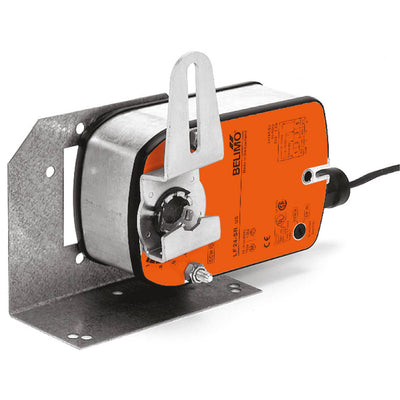

LF crankarm adaptor kit (includes ZG-112).
Application
The ZG-LF112 Crank Arm Adaptor Kit is designed for applications where the actuator cannot be mounted directly to the damper shaft. It may be used for outside or inside the duct mounting.
Description
The ZG-LF112 Crank Arm Adaptor Kit includes: 1 ZG-112 Mounting Bracket 1 KH-LF Crank Arm with Retaining Clip 2 Bolts with Nuts NOTE: May require crank arm and ball joints The ZG-112 is provided with hole patterns to mount the LF series actuators in either a horizontal or vertical position to meet space requirements. The ZG-112 Mounting Bracket is designed to mount the NF and AF series actuator in the same mounting locations as common foot mounted, crank arm style actuators. Hole patterns in the base match common Honeywell™, Siebe™ (Barber Coleman™), and Johnson Controls™ actuators for easy retrofit.
LF crankarm adaptor kit (includes ZG-112).
Specifications
Item Number | ZG-LF112 |
Brand | Belimo |
Collection | Belimo LF Series |
Collection | Damper Actuator Accessories |
