Z2075QPT-G+CQKX24 | ZoneTight (PIQCV), 3/4
$392.85
Brand: BelimoSKU: Z2075QPT-G+CQKX24
List Price
$873.00
$392.85
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Z2075QPT-G+CQKX24 | ZoneTight (PIQCV), 3/4", 2-way, 9 | ConfigurableValve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off | Belimo

Belimo | Z2075QPT-G+CQKX24

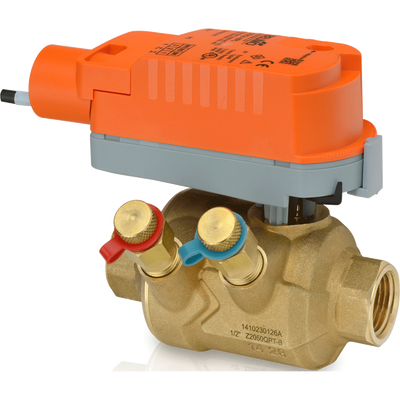

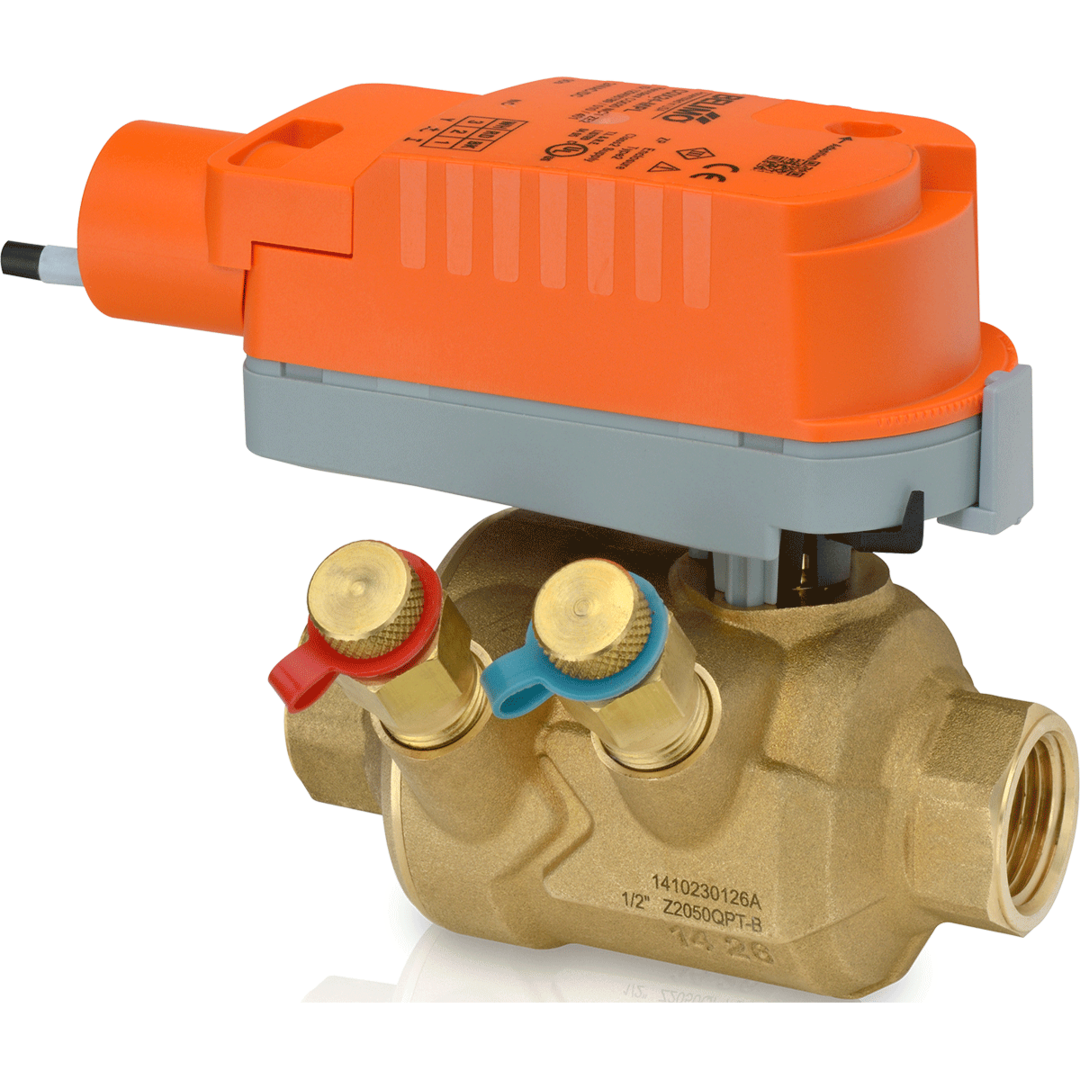

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2075QPT-G+CQKX24

Documents and manuals

Belimo Z2075QPT-G+CQKX24 Documents

Overview

Details for Z2075QPT-G+CQKX24

ZoneTight (PIQCV), 3/4", 2-way, 9 | ConfigurableValve Actuator, Electronic fail-safe, AC/DC 24 V, On/Off

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
End Fitting
Internal thread
Flow
9
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
PI-Technology
Mechanical
Pressure Independent
YES
Trim
Stainless steel
Valve Size
0.75" [20]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
On/Off
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<60 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
