Z2050QS-J+CQKBUP-RR | ZoneTight (QCV), 1/2
$144.45
Brand: BelimoSKU: Z2050QS-J+CQKBUP-RR
List Price
$321.00
$144.45
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Z2050QS-J+CQKBUP-RR | ZoneTight (QCV), 1/2", 2-way | Valve Actuator, Electronic fail-safe, AC/DC 100-240 V, On/Off, Normally Closed, Fail-safe position Closed | Belimo

Belimo | Z2050QS-J+CQKBUP-RR

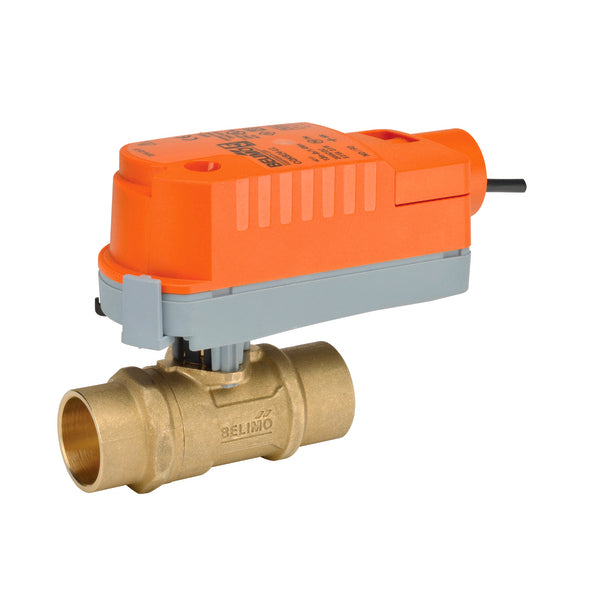

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QS-J+CQKBUP-RR

Documents and manuals

Belimo Z2050QS-J+CQKBUP-RR Documents

Overview

Details for Z2050QS-J+CQKBUP-RR

ZoneTight (QCV), 1/2", 2-way | Valve Actuator, Electronic fail-safe, AC/DC 100-240 V, On/Off, Normally Closed, Fail-safe position Closed

Application

The QCV zone valves are suited for large commercial buildings where higher close-off and the ability to change flow is desired. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.


Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
5.9
End Fitting
Sweat
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Chrome plated brass
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
On/Off
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<60 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 100...240 V
