Z2050QPT-F+CQX24-SR | ZoneTight (PIQCV), 1/2
$323.10
Brand: BelimoSKU: Z2050QPT-F+CQX24-SR
List Price
$718.00
$323.10
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

Z2050QPT-F+CQX24-SR | ZoneTight (PIQCV), 1/2", 2-way, 4.3 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo

Belimo | Z2050QPT-F+CQX24-SR

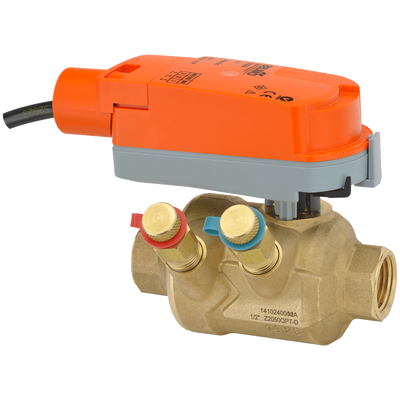

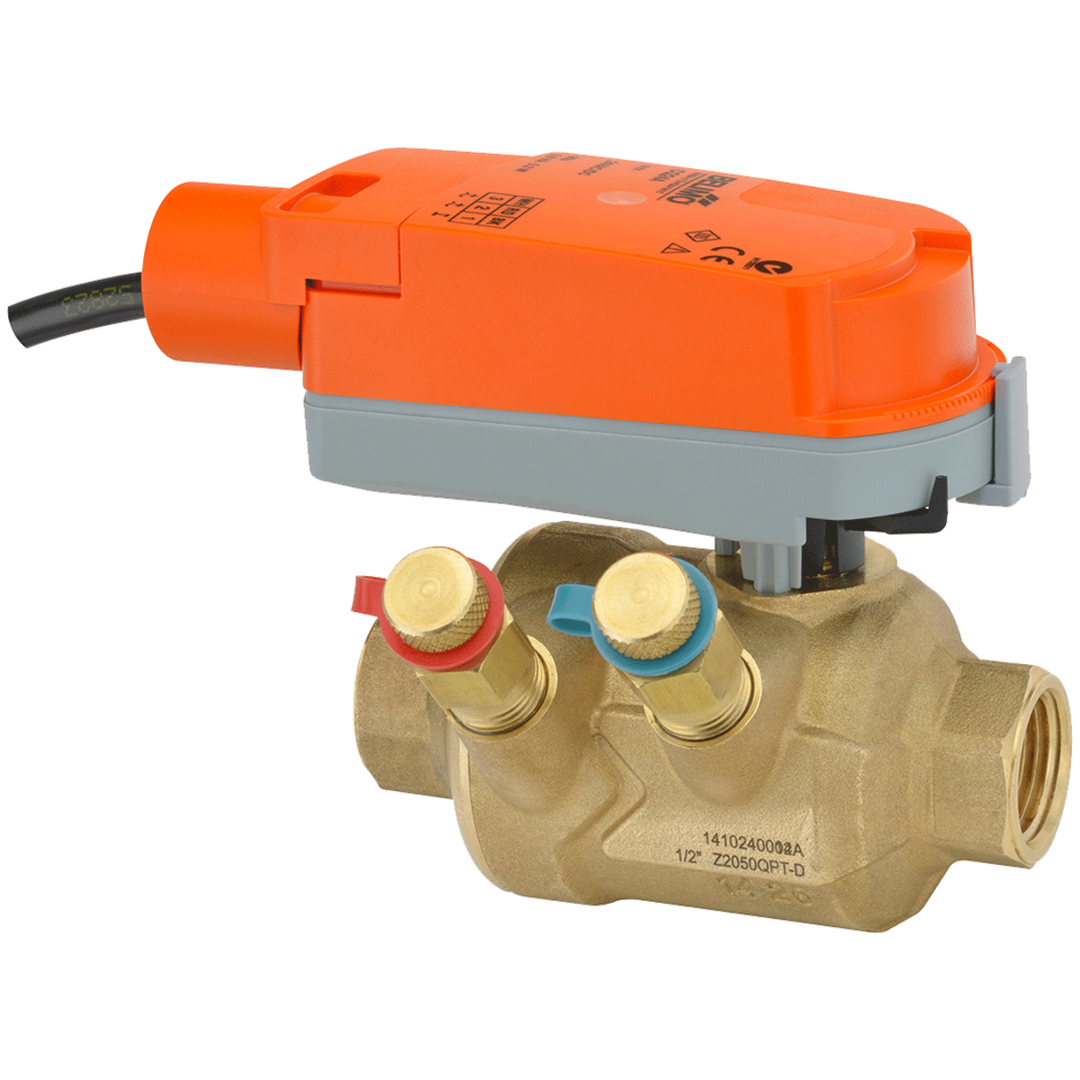

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QPT-F+CQX24-SR

Documents and manuals

Belimo Z2050QPT-F+CQX24-SR Documents

Overview

Details for Z2050QPT-F+CQX24-SR

ZoneTight (PIQCV), 1/2", 2-way, 4.3 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
End Fitting
Internal thread
Flow
4.3
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
PI-Technology
Mechanical
Pressure Independent
YES
Trim
Stainless steel
Valve Size
0.5" [15]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP40 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
0.3 W
Power Consumption (Running)
0.4 W
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC/DC 24 V
