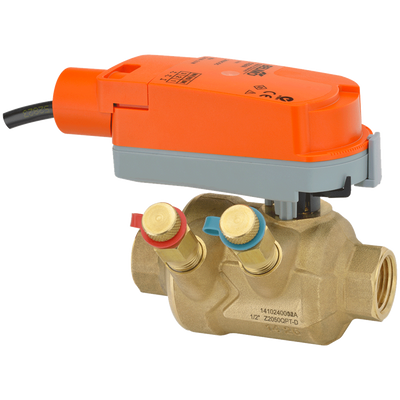

Z2050QPT-F+CQB24-3 | ZoneTight | 0.5" | 2 Way | 4 GPM | w/ Non-Spg | 24V | On/Off/Floating | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to Z2050QPT-F+CQB24-3
Documents and manuals
Belimo Z2050QPT-F+CQB24-3 Documents
Overview
Details for Z2050QPT-F+CQB24-3
ZoneTight | 0.5" | 2 Way | 4 GPM | w/ Non-Spg | 24V | On/Off/Floating
ZoneTight | 0.5" | 2 Way | 4 GPM | w/ Non-Spg | 24V | On/Off/Floating
Application
The PIQCV zone valves with its pressure independent technology are suited for large commercial buildings where higher close-off and dynamic balancing is required. Common applications include unit ventilators, fan coil units, VAV reheat coils, fin tube casing, radiant panels and duct coils. The valve fits in space restricted areas and can be assembled without the use of tools.
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- End Fitting
- Internal thread
- Flow
- 4.3
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- PI-Technology
- Mechanical
- Pressure Independent
- YES
- Trim
- Stainless steel
- Valve Size
- 0.5" [15]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP40 NEMA 2
- Electrical Connection
- cable
- Power Consumption (Holding)
- 0.2 W
- Power Consumption (Running)
- 0.3 W
- Running Time (Motor)
- 75 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
