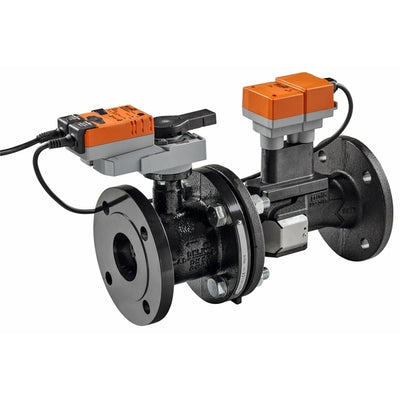

P6250SU-127+ARX24-EP2-MOD | Electronic Pressure Independent Valve (EPIV), 2 1/2", 2-way, ANSI Class 125, 127 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to P6250SU-127+ARX24-EP2-MOD
Documents and manuals
Belimo P6250SU-127+ARX24-EP2-MOD Documents
Overview
Details for P6250SU-127+ARX24-EP2-MOD
Electronic Pressure Independent Valve (EPIV), 2 1/2", 2-way, ANSI Class 125, 127 | Configurable Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V
Water-side control of heating and cooling systems for AHUs and water coils. Equal Percentage/ Linear: heating and cooling applications.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- End Fitting
- Flange
- Flow
- 127
- Fluid
- Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
- Pattern
- 2-way
- PI-Technology
- Electronic
- Pressure Independent
- YES
- Sensor Technology
- Ultrasonic with glycol and temperature compensation
- Trim
- Stainless steel
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- BACnet MS/TP
- Modbus RTU
- MP-Bus
- Hybrid (communicative/analog)
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Running)
- 8.5 W
- Running Time (Motor)
- 90 s
- Torque
- 180 in-lb [20 Nm]
- Voltage AC/DC
- AC/DC 24 V
