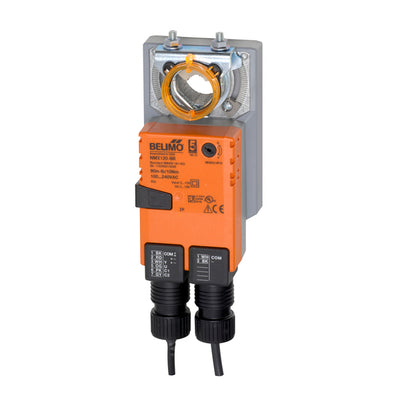

NMX120-SR | Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NMX120-SR
Documents and manuals
Belimo NMX120-SR Documents
Overview
Details for NMX120-SR
Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" diameter by means of its universal clamp, 1/2" self centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2 to 10 VDC, or with the addition of a 500 Ω resistor, a 4 to 20 mA control input from an electronic controller or positioner. A 2 to 10 VDC feedback signal is provided for position indication or master-slave applications.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 315
- Control Type
- DC 2...10 V
- Degree of Protection
- 852
- Electrical Connection
- cable
- Power Consumption (Holding)
- 1 W
- Power Consumption (Running)
- 3.5 W
- Protection category
- IP54
- Running Time (Motor)
- 95 s / 90B0
- Running Time range (Motor)
- 4560 150 s
- Torque
- 90 in-lb [10 Nm]
- Voltage AC/DC
- AC 100...240 V
