NMQX24-1 | Damper Actuator | 70 in-lb | Non-Spg Rtn | 24V | On/Off | Belimo

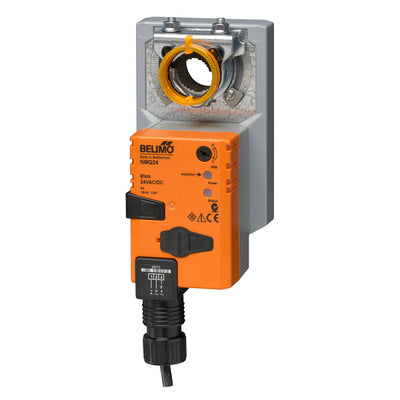

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NMQX24-1
Documents and manuals
Belimo NMQX24-1 Documents
Overview
Details for NMQX24-1
Damper Actuator | 70 in-lb | Non-Spg Rtn | 24V | On/Off
For On/Off control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" diameter by means of its universal clamp, 1/2" self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 13 W
- Running Time (Motor)
- 4Â s / 90B0
- Safety Function
- NO
- Torque
- 70Â in-lb [8Â Nm]
- Voltage AC/DC
- AC/DCÂ 24Â V
Parts & Accessories
