NMCB24-SR | Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

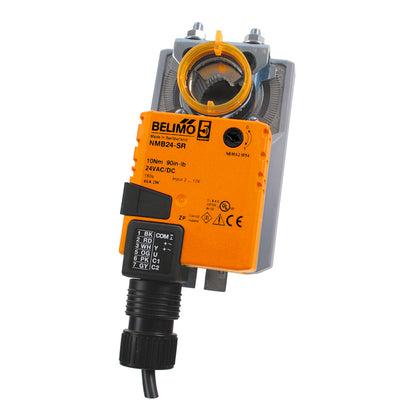

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NMCB24-SR
Documents and manuals
Belimo NMCB24-SR Documents
Overview
Details for NMCB24-SR
Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2...10 V, or with the addition of a 500 Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication or master-slave applications.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.4 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 45 s / 90B0
- Safety Function
- NO
- Torque
- 90 in-lb [10 Nm]
- Voltage AC/DC
- AC/DC 24 V
