NMB24-MFT | Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo

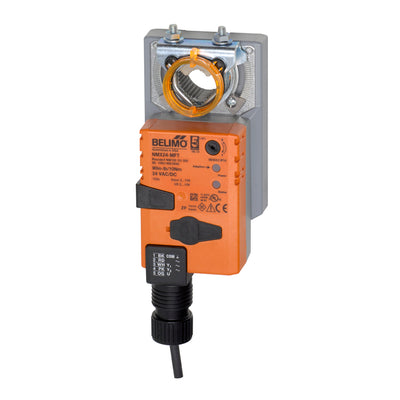

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to NMB24-MFT
Documents and manuals
Belimo NMB24-MFT Documents
Overview
Details for NMB24-MFT
Damper Actuator | 90 in-lb | Non-Spg Rtn | 24V | Modulating
Application For on/off and floating point control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp, 1/2" self-centered default. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- MFT/Programmable
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 3.5 W
- Running Time (Motor)
- 150 s / 90B0
- Running Time range (Motor)
- 45...170 s
- Safety Function
- NO
- Torque
- 90 in-lb [10 Nm]
- Voltage AC/DC
- AC/DC 24 V
Parts & Accessories
