LMX24-MFT95 | Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo (OBSOLETE)

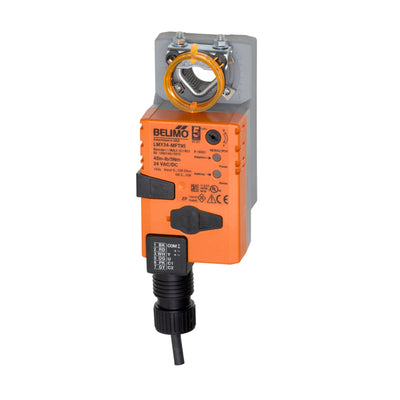

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LMX24-MFT95
Documents and manuals
Belimo LMX24-MFT95 Documents
Overview
Details for LMX24-MFT95
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
Damper Actuator | 45 in-lb | Non-Spg Rtn | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 1/4" up to 5/8" in diameter by means of its universal clamp. Shafts up to 3/4" diameter can be accommodated by an accessory clamp. The default parameters for 0 to 135 Ω input applications of the …MFT95 actuator are assigned during manufacturing. If necessary, custom versions of the actuators can be ordered. The parameters can be changed by two means: pre-set and custom configurations from Belimo or on-site configurations using the Belimo PC-Tool software.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- 0...135 N)
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.2 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 150 s / 90B0
- Running Time range (Motor)
- 30...150 s
- Safety Function
- NO
- Torque
- 45 in-lb [5 Nm]
- Voltage AC/DC
- AC/DC 24 V
