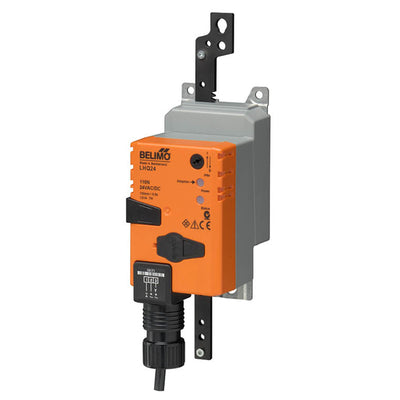

LHQB24-1-100 | Damper Actuator | 22 lbf | Non-Spg Rtn | 24V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to LHQB24-1-100
Documents and manuals
Belimo LHQB24-1-100 Documents
Overview
Details for LHQB24-1-100
Damper Actuator | 22 lbf | Non-Spg Rtn | 24V | On/Off
The actuator is not provided with and does not require any limit switches, but is electronically protected against overload. The anti-rotation strap supplied with the actuator will prevent lateral movement. The LHB(X)24-3... series provides 4, 8, or 12 in of linear force. The stroke of the gear rack can be adjusted on both sides in increments of 0.8 in [20 mm] by means of the mechanical end stops. When reaching the damper or actuator end position, the actuator automatically stops. The gears can be manually disengaged with a button on the actuator cover. The LHB(X)24-3… actuators use a sensorless brushless DC motor, which is controlled by an Application Specific Integrated Circuit (ASIC). The ASIC monitors and controls the actuator’s rotation and provides a digital rotation sensing (DRS) function to prevent damage to the actuator in a stall condition. Power consumption is reduced in holding mode.Specifications
- Actuator Type
- Non fail-safe
- Control Type
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 100 N [22 lbf]
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.5 W
- Power Consumption (Running)
- 13 W
- Running Time (Motor)
- 3.5 s / 100 mm
- Safety Function
- NO
- Stroke
- 1.6...4.0" [40...100 mm]
- Voltage AC/DC
- AC/DC 24 V
