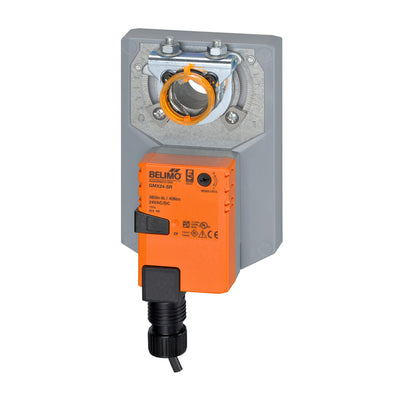

GMX24-SR | Damper Actuator | 360 in-lb | Non-Spg Rtn | 24V | Modulating | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GMX24-SR
Documents and manuals
Belimo GMX24-SR Documents
Overview
Details for GMX24-SR
Damper Actuator | 360 in-lb | Non-Spg Rtn | 24V | Modulating
For proportional modulation of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled (only the positive part of the sine wave) to the damper shaft. The actuator operates in response to 0 to 20V phasecut control input only on the positive part of the sine wave from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication.Specifications
- Actuator Type
- Non fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 4.5 W
- Running Time (Motor)
- 150 s / 90B0
- Safety Function
- NO
- Torque
- 360 in-lb [40 Nm]
- Voltage AC/DC
- AC/DC 24 V
Parts & Accessories
ZS-300 | NEMA 4X | 304 stainless steel enclosure. | Belimo
$1,546.20 each
ZS-260 | Explosion proof housing. | Belimo
$1,875.15 each
