GKB24-SR | Damper Actuator | 360 in-lb | Electronic FS | 24V | Modulating | Belimo

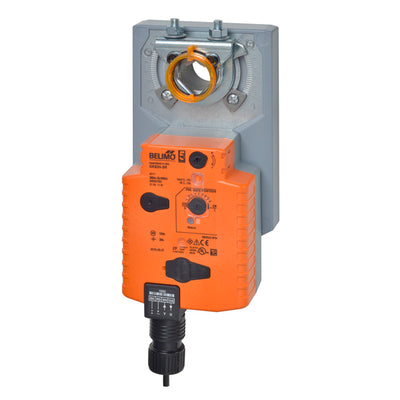

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to GKB24-SR
Overview
Details for GKB24-SR
Damper Actuator | 360 in-lb | Electronic FS | 24V | Modulating
For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done inaccordance with the damper manufacturer’s specifications. The actuator is mounted directly to a dampershaft up to 1.05" in diameter by means of its universal clamp. A crank arm and several mounting bracketsare available for applications where the actuator cannot be direct coupled to the damper shaft. Theactuator operates in response to a DC 2...10 Vor, with the addition of a 500Ω resistor, a 4...20 mA controlinput from an electronic controller or positioner. A DC 2...10 V feedback signal is provided for positionindication. A common installation technique for control of multi-section dampers is to use the U5 position feedback ofone actuator (Master) to control multiple actuators (Slaves). Belimo refers to this as Master/Slave control.The only requirement is that the actuators are installed on MECHANICALLY SEPARATE damper shafts.Specifications
- Actuator Type
- Electrical fail-safe
- Angle of Rotation
- 95
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Direction of Rotation (Fail-Safe)
- Reversible with switch
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 11 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Safety Function
- YES
- Torque
- 360 in-lb [40 Nm]
- Voltage AC/DC
- AC/DC 24 V
