G780S-250+AVKB120-3 | Globe Valve | 3
$3,029.85
Brand: BelimoSKU: G780S-250+AVKB120-3
List Price
$6,733.00
$3,029.85
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

G780S-250+AVKB120-3 | Globe Valve | 3" | 3 Way | 91 Cv | w/ Electronic FS | 120V | Floating Point | Belimo

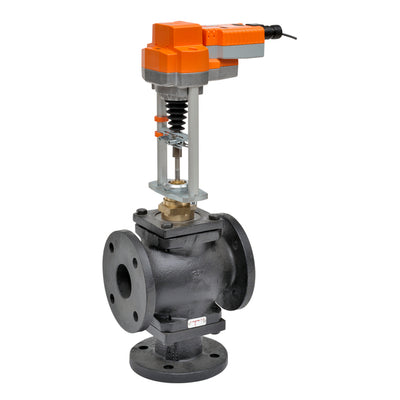

Belimo | G780S-250+AVKB120-3
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G780S-250+AVKB120-3

Documents and manuals

Belimo G780S-250+AVKB120-3 Documents

Overview

Details for G780S-250+AVKB120-3

Globe Valve | 3" | 3 Way | 91 Cv | w/ Electronic FS | 120V | Floating Point

Specifications

Valve specifications
ANSI Class
250
Controllable Flow Range
Stem up - open B b AB
Cv
85
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
3" [80]
Actuator specifications
Actuator Type
Electrical fail-safe
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Force
2000 N [450 lbf]
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
2 W
Power Consumption (Running)
3.5 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
90 s /
Stroke
1.25" [32 mm]
Voltage AC/DC
AC 100...240 V
