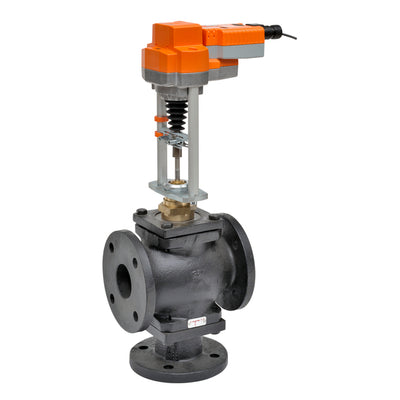

G765S-250+AVKX24-MFT | Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Electronic FS | 24V | MFT | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G765S-250+AVKX24-MFT
Documents and manuals
Belimo G765S-250+AVKX24-MFT Documents
Overview
Details for G765S-250+AVKX24-MFT
Globe Valve | 2.5" | 3 Way | 68 Cv | w/ Electronic FS | 24V | MFT
This valve is typically used in large air handling units on heating or cooling coils. This valve is suitable for use in a hydronic system with variable flow. Valves are designed for ANSI 250 piping systemsSpecifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open B b AB
- Cv
- 68
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 2000 N [450 lbf]
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 5 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 90 s /
- Stroke
- 1.25" [32 mm]
- Voltage AC/DC
- AC/DC 24 V
