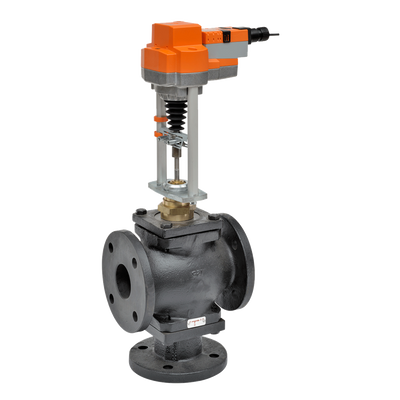

G7150-250+RVX24-3 | Globe Valve | 6" | 3 Way | 340 Cv | w/ Non-Spring | 24V | Floating Point | Belimo
Documents and manuals
Belimo G7150-250+RVX24-3 Documents
Overview
Details for G7150-250+RVX24-3
The Belimo G7150-250+RVX24-3 is a high-performance, 3-way globe valve designed for precise flow control in demanding HVAC and industrial applications. This 6-inch valve features a high Cv rating (340), ensuring efficient fluid handling. The non-spring return actuator and 24V floating point control provide reliable, responsive operation. Its robust construction is built for long-term durability in various environments. This valve is ideal for applications requiring precise modulation of flow in heating, ventilation, and air conditioning (HVAC) systems and other industrial processes.
Key Features and Benefits:
- High Flow Capacity (Cv 340): Efficient fluid handling even under high-demand conditions.
- Precise Flow Control: Floating point control allows for fine-tuned flow regulation.
- Reliable Actuation: Non-spring return actuator ensures reliable valve positioning.
- Versatile Applications: Suitable for various HVAC and industrial processes requiring precise flow control.
Durable Construction: Built for long-term reliability in demanding environments.
Specifications
| Item Number | G7150-250+RVX24-3 |
| Brand | Belimo |
| Control Valves Type | Globe Valve |
| Spring Return | Non-Spring Return |
|
Valve Type |
3-Way Globe Valve |
|
Valve Size |
6" (DN150) |
|
Cv Value / GPM |
340 |
|
Control Type |
Floating Point |
|
Actuator Type |
Non-Spring Return |
|
Power Supply |
24 VAC/DC, 11 VA transformer |
|
Power Consumption |
6W |
|
Control Signal |
On/Off, Floating Point |
|
Close-Off Pressure |
28 psi |
|
Enclosure Rating |
NEMA 2 / IP54 |
|
Connection |
Flanged (125 lb) |
|
Operating Temperature Range |
-22°F to 122°F (-30°C to 50°C) |
|
Fluid Compatibility |
Chilled or hot water, up to 60% glycol |
