G250B-N+LVB24-SR | Globe Valve | 2" | 2 Way | 40 Cv | w/ Non-Spring | 24V | Modulating | Belimo

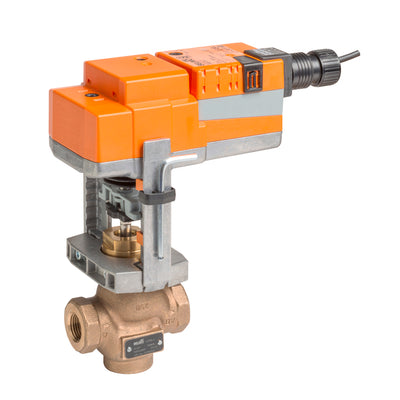

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G250B-N+LVB24-SR
Documents and manuals
Belimo G250B-N+LVB24-SR Documents
Overview
Details for G250B-N+LVB24-SR
Globe Valve | 2" | 2 Way | 40 Cv | w/ Non-Spring | 24V | Modulating
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include unit ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in hydronic systems with variable flow. Bronze and stainless steel trim valves can be used for steam applications, depending on actuator and close-off combinations.Specifications
- Valve specifications
- ANSI Class
- 250
- Controllable Flow Range
- Stem up - open A b AB
- Cv
- 40
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Bronze
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Force
- 500 N [115 lbf]
- Manual Override
- 4 mm hex crank (shipped w/actuator)
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 1 W
- Running Time (Motor)
- 90 s /
- Stroke
- 0.75" [19 mm]
- Voltage AC/DC
- AC/DC 24 V
