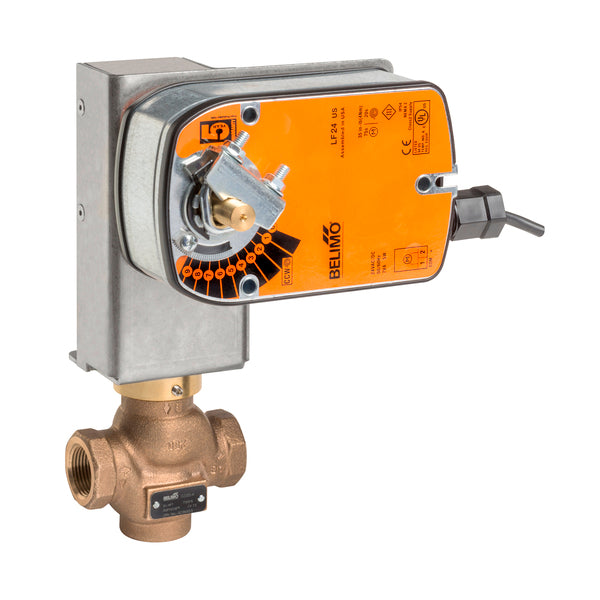

G225S-K+LF24-SR-S US | Globe Valve (GV) | 1" | 2-way | ANSI Class 250 | Belimo

Belimo | G225S-K+LF24-SR-S US
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to G225S-K+LF24-SR-S US

Documents and manuals

Belimo G225S-K+LF24-SR-S US Documents

Overview

Details for G225S-K+LF24-SR-S US

Globe Valve (GV) | 1" | 2-way | ANSI Class 250

For fail-safe, modulating control of dampers in HVAC systems. Actuator sizing should be done in accordance with the damper manufacturer’s specifications. The actuator is mounted directly to a damper shaft from 3/8" up to 1/2" in diameter by means of its universal clamp, 1/2" shaft centered at delivery. For shafts up to 3/4" use K6-1 accessory. A crank arm and several mounting brackets are available for applications where the actuator cannot be direct coupled to the damper shaft. The actuator operates in response to a 2...10 V, or with the addition of a 500Ω resistor, a 4...20 mA control input from an electronic controller or positioner. A 2...10 V feedback signal is provided for position indication.

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
Controllable Flow Range
Stem up - open A b AB
Cv
10
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1" [25]
Actuator specifications
Actuator Type
Spring return
Auxiliary Switches
1 x SPDT
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Power Consumption (Holding)
1 W
Power Consumption (Running)
2.5 W
Running Time (Fail-safe)
<25 s
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
