F780HDU+GMCX120-SR-T-X1 | Butterfly Valve (BFV), 3", 3-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC100-240V, modulating | Belimo

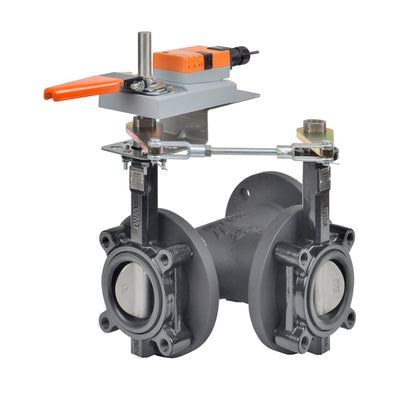

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F780HDU+GMCX120-SR-T-X1
Documents and manuals
Belimo F780HDU+GMCX120-SR-T-X1 Documents
Overview
Details for F780HDU+GMCX120-SR-T-X1
Butterfly Valve (BFV), 3", 3-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC100-240V, modulating
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 302
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- DC 2...10 V
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 6 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 100...240 V
