F780HDU+GMB24-MFT-X1 | Butterfly Valve (BFV), 3
$1,261.35
Brand: BelimoSKU: F780HDU+GMB24-MFT-X1
List Price
$2,803.00
$1,261.35
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

F780HDU+GMB24-MFT-X1 | Butterfly Valve (BFV), 3", 3-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo

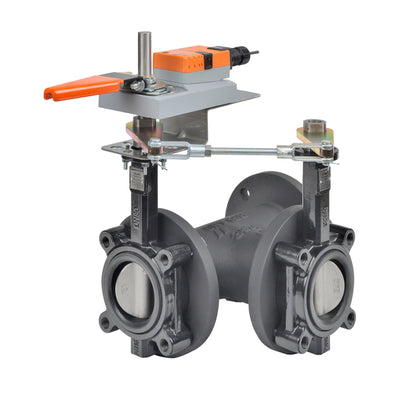

Belimo | F780HDU+GMB24-MFT-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F780HDU+GMB24-MFT-X1

Documents and manuals

Belimo F780HDU+GMB24-MFT-X1 Documents

Overview

Details for F780HDU+GMB24-MFT-X1

Butterfly Valve (BFV), 3", 3-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
302
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Valve Size
3" [80]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
4 W
Running Time (Motor)
150 s / 90B0
Torque
40 Nm
Voltage AC/DC
AC/DC 24 V
