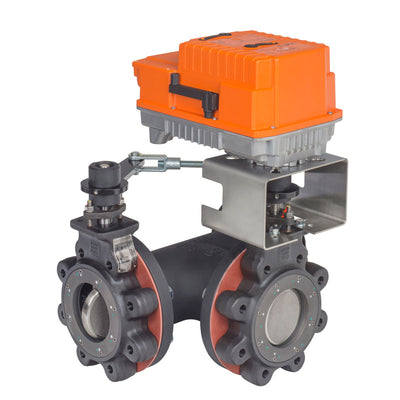

F780-150SHP+PKRXUP-MFT-T | Butterfly Valve | 3" | 3 Way | 228 Cv | w/ Electronic Fail-Safe | 24 -240V | MFT | SW | NEMA 4XH | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F780-150SHP+PKRXUP-MFT-T
Overview
Details for F780-150SHP+PKRXUP-MFT-T
Butterfly Valve | 3" | 3 Way | 228 Cv | w/ Electronic Fail-Safe | 24 -240V | MFT | SW | NEMA 4XH
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 150
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 228
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 9 W
- Power Consumption (Running)
- 52 W
- Running Time (Fail-safe)
- <30 s
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
