F765VIC+GMB24-MFT-X1 | Butterfly Valve - VIC (BFV), 2 1/2
$2,930.40
Brand: BelimoSKU: F765VIC+GMB24-MFT-X1
List Price
$6,512.00
$2,930.40
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

F765VIC+GMB24-MFT-X1 | Butterfly Valve - VIC (BFV), 2 1/2", 3-way, ANSI ClassGrooved AWWA | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V | Belimo

Belimo | F765VIC+GMB24-MFT-X1

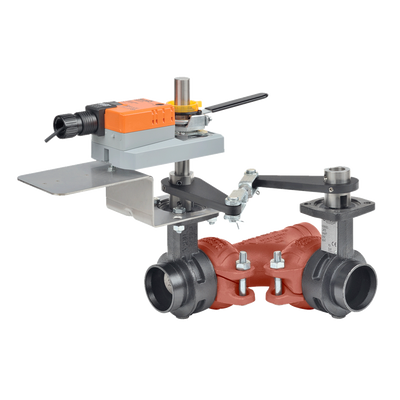

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F765VIC+GMB24-MFT-X1

Documents and manuals

Belimo F765VIC+GMB24-MFT-X1 Documents

Overview

Details for F765VIC+GMB24-MFT-X1

Butterfly Valve - VIC (BFV), 2 1/2", 3-way, ANSI ClassGrooved AWWA | Valve Actuator, Non fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
Grooved AWWA
Controllable Flow Range
90B0 rotation
Cv
260
End Connection
Grooved types
End Fitting
Grooved
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.5 W
Power Consumption (Running)
4 W
Running Time (Motor)
150 s / 90B0
Torque
40 Nm
Voltage AC/DC
AC/DC 24 V
