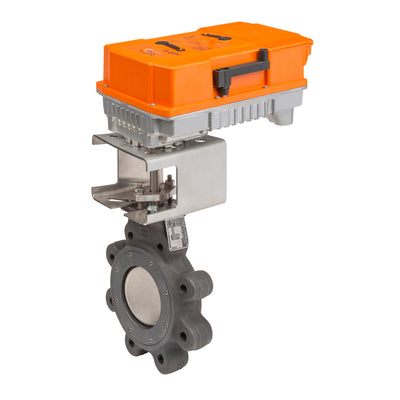

F680-300SHP+PRBUP-3-T | Butterfly Valve | 3" | 2 Way | 223 Cv | w/ Non-Spring | 24 -240V | On/Off | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F680-300SHP+PRBUP-3-T
Overview
Details for F680-300SHP+PRBUP-3-T
Butterfly Valve | 3" | 2 Way | 223 Cv | w/ Non-Spring | 24 -240V | On/Off
These valves are designed to meet the needs of HVAC and Commercial applications requiring positive shut-off for liquids at higher pressures and temperatures. Typical applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control, bypass and process control applications. The large Cv values provide for an economical control valve solution for larger fl ow applications.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 300
- Controllable Flow Range
- Quarter turn mechanically limited
- Cv
- 228
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol steam
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 3" [80]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Auxiliary Switches
- 2 x SPDT
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- 7 mm hex crank supplied
- Power Consumption (Holding)
- 6 W
- Power Consumption (Running)
- 20 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC 24...240 V / DC 24...125 V
