F650-150SHP+PRXUP-MFT-T | Butterfly Valve | 2
$3,548.70
Brand: BelimoSKU: F650-150SHP+PRXUP-MFT-T
List Price
$7,886.00
$3,548.70
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

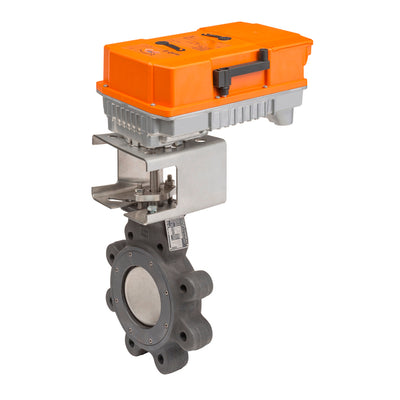

F650-150SHP+PRXUP-MFT-T | Butterfly Valve | 2" | 2 Way | 102 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH | Belimo

Belimo | F650-150SHP+PRXUP-MFT-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F650-150SHP+PRXUP-MFT-T

Documents and manuals

Belimo F650-150SHP+PRXUP-MFT-T Documents

Overview

Details for F650-150SHP+PRXUP-MFT-T

Butterfly Valve | 2" | 2 Way | 102 Cv | w/ Non-Spring | 24 -240V | MFT | SW | NEMA 4XH

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
150
Controllable Flow Range
Quarter turn mechanically limited
Cv
102
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Valve Size
2" [50]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
6 W
Power Consumption (Running)
20 W
Running Time (Motor)
35 s / 90B0
Torque
160 Nm
Voltage AC/DC
AC 24...240 V / DC 24...125 V
