F6400HD+SY7-110 | Butterfly Valve (BFV), 16
$7,534.35
Brand: BelimoSKU: F6400HD+SY7-110
List Price
$16,743.00
$7,534.35
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

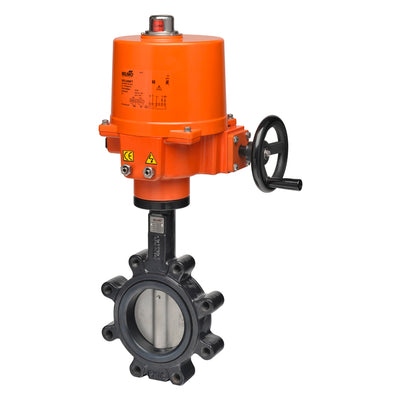

F6400HD+SY7-110 | Butterfly Valve (BFV), 16", 2-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC120V, On/Off, Floating point, 2 x SPDT | Belimo

Belimo | F6400HD+SY7-110
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6400HD+SY7-110

Documents and manuals

Belimo F6400HD+SY7-110 Documents

Overview

Details for F6400HD+SY7-110

Butterfly Valve (BFV), 16", 2-way, ANSI ClassConsistent with 125 | Valve Actuator, Non fail-safe, AC120V, On/Off, Floating point, 2 x SPDT

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
Consistent with 125
Controllable Flow Range
90B0 rotation
Cv
16388
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
16" [400]
Actuator specifications
Actuator Type
Non fail-safe
Auxiliary Switches
2 x SPDT
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Hand wheel
Running Time (Motor)
50 s
Voltage AC/DC
AC 120 V
