F6150HDU+DRCX120-3 | Butterfly Valve | 6" | 2 Way | 1579 Cv | w/ Non-Spring | 120V | Floating Point | Belimo

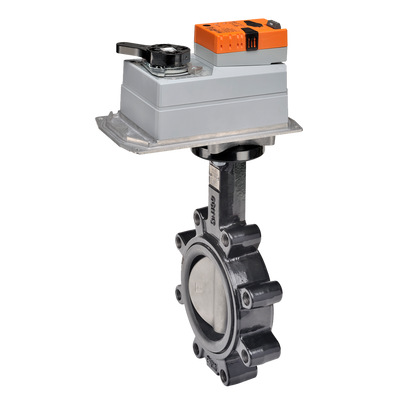

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6150HDU+DRCX120-3
Documents and manuals
Belimo F6150HDU+DRCX120-3 Documents
Overview
Details for F6150HDU+DRCX120-3
Butterfly Valve | 6" | 2 Way | 1579 Cv | w/ Non-Spring | 120V | Floating Point
Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 1579
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 5 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC/DC 100...240 V
