F6125HD+DRX24-MFT-T | Butterfly Valve | 5
$855.90
Brand: BelimoSKU: F6125HD+DRX24-MFT-T
List Price
$1,902.00
$855.90
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

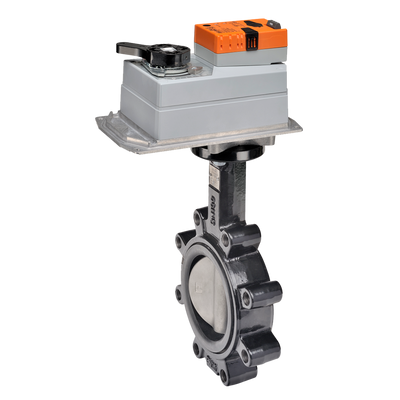

F6125HD+DRX24-MFT-T | Butterfly Valve | 5" | 2 Way | 1022Cv | w/ Non-Spring | 24V | MFT | Belimo

Belimo | F6125HD+DRX24-MFT-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6125HD+DRX24-MFT-T

Documents and manuals

Belimo F6125HD+DRX24-MFT-T Documents

Overview

Details for F6125HD+DRX24-MFT-T

Butterfly Valve | 5" | 2 Way | 1022Cv | w/ Non-Spring | 24V | MFT

Specifications

Valve specifications
ANSI Class
Consistent with 125
Close-off Pressure
200 kPa
Controllable Flow Range
90B0 rotation
Cv
1022
End Connection
Lug types
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Valve Size
5" [125]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
terminals
Manual Override
External push button
Power Consumption (Holding)
3 W
Power Consumption (Running)
12 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
