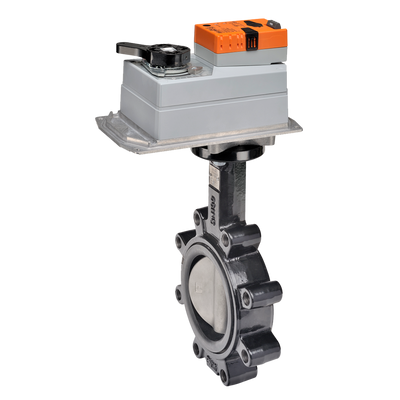

F6100HD+DRCX24-3-T | Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | Floating | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to F6100HD+DRCX24-3-T
Documents and manuals
Belimo F6100HD+DRCX24-3-T Documents
Overview
Details for F6100HD+DRCX24-3-T
Butterfly Valve | 4" | 2 Way | 600Cv | w/ Non-Spring | 24V | Floating
The Belimo F6, F7 Series butterfly valves fulfill the requirements of commercial and industrial HVAC applications requiring positive shutoff for water. Applications include chiller isolation, cooling tower isolation, change-over systems, large air handler coil control and bypass, and various water distribution and storage systems. The F6 assemblies are two-way and the F7 are three-way flow patterns. Undercut disc assemblies, designated by "HDU" in the part number have a maximum close-off of 50 psid, and full-cut models, designated by "HD" part number, have full 200 psid close-off rating. Small size valves are available with economical Belimo rotary actuators and all sizes are available with industrial grade, NEMA 4 actuators, to meet most application requirements. Other sizes, assembly combinations, connection types, and materials of construction are available.Specifications
- Valve specifications
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 600
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- On/Off
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- terminals
- Manual Override
- External push button
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Motor)
- 35 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
