EXT-LD14125BE1AX+AFX24-X1 | Potable Water Valve (BV), 2.5", 2-way, ANSI Class Consistent with 125, Cv 196 |Valve Actuator, Spring return, AC/DC 24 V, On/Off | Belimo

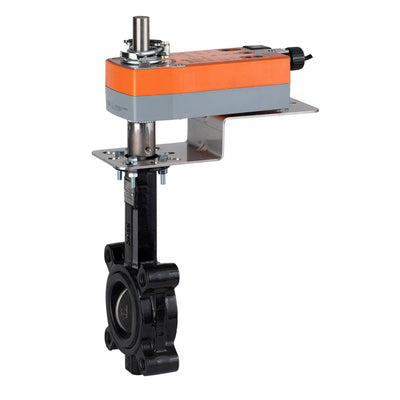

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EXT-LD14125BE1AX+AFX24-X1
Documents and manuals
Belimo EXT-LD14125BE1AX+AFX24-X1 Documents
Overview
Details for EXT-LD14125BE1AX+AFX24-X1
Potable Water Valve (BV), 2.5", 2-way, ANSI Class Consistent with 125, Cv 196 |Valve Actuator, Spring return, AC/DC 24 V, On/Off
Specifications
- Actuator Type
- Spring return
- Angle of Rotation
- 95
- ANSI Class
- Consistent with 125
- Controllable Flow Range
- 90B0 rotation
- Cv
- 196
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- End Connection
- Lug types
- End Fitting
- Flange
- Fluid
- Potable water
- Manual Override
- 5 mm hex crank (3/16" Allen) supplied
- Pattern
- 2-way
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 5 W
- Pressure Independent
- NO
- Product Type
- Combo
- Running Time (Fail-safe)
- <20 s
- Running Time (Motor)
- 75 s / 90B0
- Valve Size
- 2.5" [65]
- Voltage AC/DC
- AC/DC 24 V
