EXT-LD14104BE1AX+DKRX24-MFT-T | Potable water Valve (BV) | 4
$1,788.75
Brand: BelimoSKU: EXT-LD14104BE1AX+DKRX24-MFT-T
List Price
$3,975.00
$1,788.75
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

EXT-LD14104BE1AX+DKRX24-MFT-T | Potable water Valve (BV) | 4" | 2-way | ANSI Class Consistent with 125 | Cv 600  | Configurable Valve Actuator | Electrical fail-safe | AC/DC 24 V | 2-10 V | terminals | MFT/programmable | Belimo

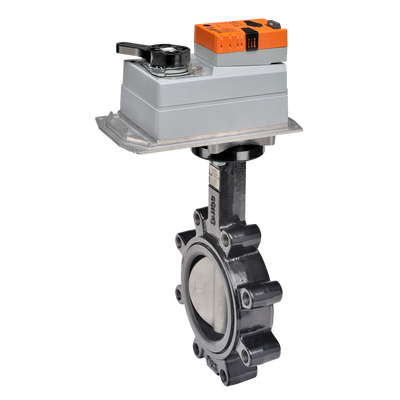

Belimo | EXT-LD14104BE1AX+DKRX24-MFT-T
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EXT-LD14104BE1AX+DKRX24-MFT-T

Documents and manuals

Belimo EXT-LD14104BE1AX+DKRX24-MFT-T Documents

Overview

Details for EXT-LD14104BE1AX+DKRX24-MFT-T

Potable water valve (BV), 4", 2-way, ANSI Class Consistent with 125, Cv 600 |Configurable Valve Actuator, Electrical fail-safe, AC/DC 24 V, 2...10 V, terminals, MFT/programmable

Specifications

Actuator Type
Electrical fail-safe
ANSI Class
Consistent with 125
Control Type
MFT/Programmable
Controllable Flow Range
90B0 rotation
Cv
600
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
terminals
End Connection
Lug types
End Fitting
Flange
Fluid
Potable water
Manual Override
External push button
Pattern
2-way
Power Consumption (Holding)
3 W
Power Consumption (Running)
12 W
Pressure Independent
NO
Product Type
Combo
Running Time (Fail-safe)
<35 s
Running Time (Motor)
150 s / 90B0
Running Time range (Motor)
90...150 s
Torque
90 Nm
Valve Size
4" [100]
Voltage AC/DC
AC/DC 24 V
