EV500SU-495+GKRX24-EV | Energy Valve (EV), 5
$11,201.40
Brand: BelimoSKU: EV500SU-495+GKRX24-EV
List Price
$24,892.00
$11,201.40
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

EV500SU-495+GKRX24-EV | Energy Valve (EV), 5", 2-way, ANSI Class 125 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo

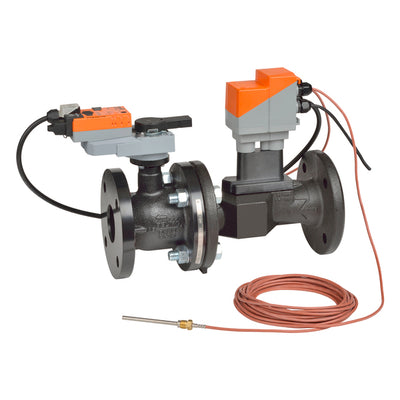

Belimo | EV500SU-495+GKRX24-EV
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EV500SU-495+GKRX24-EV

Documents and manuals

Belimo EV500SU-495+GKRX24-EV Documents

Overview

Details for EV500SU-495+GKRX24-EV

Energy Valve (EV), 5", 2-way, ANSI Class 125 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
125
End Fitting
Flange
Flow
495
Fluid
Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern
2-way
PI-Technology
Electronic
Pressure Independent
YES
Sensor Technology
Ultrasonic with glycol and temperature compensation
Trim
Stainless steel
Valve Size
5" [125]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Running)
17 W
Running Time (Fail-safe)
<35 s
Running Time (Motor)
90 s
Voltage AC/DC
AC/DC 24 V
