EV300SU-180+AKRX24-EV | Energy Valve (EV), 3", 2-way, ANSI Class 125 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo

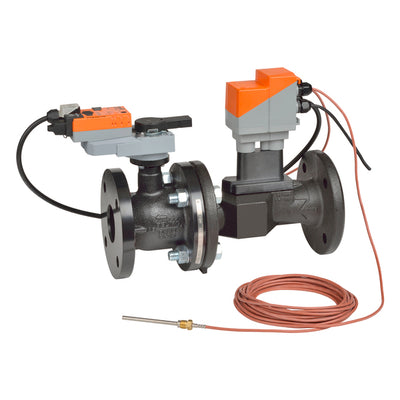

The photo is for representation purposes only and may not be a photo of product being purchased.

Details for EV300SU-180+AKRX24-EV

Energy Valve (EV), 3", 2-way, ANSI Class 125 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V

Valve specifications
Angle of Rotation: 90
ANSI Class: 125
End Fitting: Flange
Flow: 180
Fluid: Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern: 2-way
PI-Technology: Electronic
Pressure Independent: YES
Sensor Technology: Ultrasonic with glycol and temperature compensation
Trim: Stainless steel
Valve Size: 3" [80]
Actuator specifications
Actuator Type: Electrical fail-safe
Control Type: DC 2...10 V
Degree of Protection: IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Running): 14 W (0.5" to 2") 16 W (2.5" to 6")
Running Time (Fail-safe): <35 s
Running Time (Motor): 90 s
Voltage AC/DC: AC/DC 24 V
