EV250SU-127-250+AKRX24-EV | Energy Valve (EV), 2 1/2
$8,869.95
Brand: BelimoSKU: EV250SU-127-250+AKRX24-EV
List Price
$19,711.00
$8,869.95
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

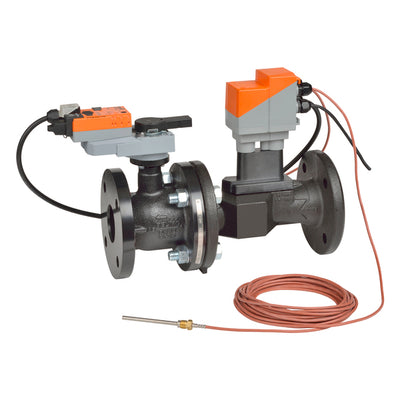

EV250SU-127-250+AKRX24-EV | Energy Valve (EV), 2 1/2", 2-way, ANSI Class 250 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V | Belimo

Belimo | EV250SU-127-250+AKRX24-EV
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to EV250SU-127-250+AKRX24-EV

Documents and manuals

Belimo EV250SU-127-250+AKRX24-EV Documents

Overview

Details for EV250SU-127-250+AKRX24-EV

Energy Valve (EV), 2 1/2", 2-way, ANSI Class 250 | Configurable Valve Actuator, Electronic fail-safe, AC/DC 24V, 2-10V

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
End Fitting
Flange
Flow
127
Fluid
Chilled or hot water up to 60% glycol max (open loop/steam not allowed)
Pattern
2-way
PI-Technology
Electronic
Pressure Independent
YES
Sensor Technology
Ultrasonic with glycol and temperature compensation
Trim
Stainless steel
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Electrical fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 1 UL Enclosure Type 1
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Running)
14 W (0.5" to 2") 16 W (2.5" to 6")
Running Time (Fail-safe)
<35 s
Running Time (Motor)
90 s
Voltage AC/DC
AC/DC 24 V
