B6600VB-507+PKRXUP-MFT-T | Ball Valve (VB), 6
$9,787.95
Brand: BelimoSKU: B6600VB-507+PKRXUP-MFT-T
List Price
$21,751.00
$9,787.95
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B6600VB-507+PKRXUP-MFT-T | Ball Valve (VB), 6", 2-way, ANSI Class150 | Configurable Valve Actuator, Electronic fail-safe, AC24-240V / DC24-125V, 2-10V, 2 x SPDT, terminals, BACnet MS/TP | Belimo | Belimo

Belimo | B6600VB-507+PKRXUP-MFT-T

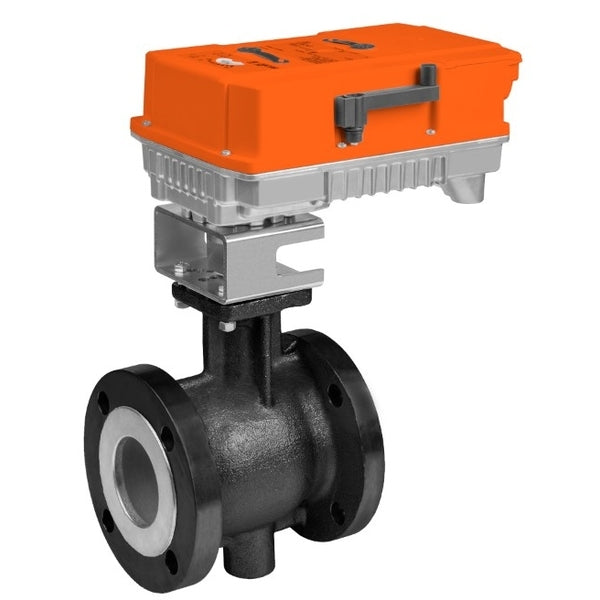

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6600VB-507+PKRXUP-MFT-T

Documents and manuals

Belimo B6600VB-507+PKRXUP-MFT-T Documents

Overview

Details for B6600VB-507+PKRXUP-MFT-T

Ball Valve (VB), 6", 2-way, ANSI Class150 | Configurable Valve Actuator, Electronic fail-safe, AC24-240V / DC24-125V, 2-10V, 2 x SPDT, terminals, BACnet MS/TP | Belimo

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
150
Controllable Flow Range
75B0
Cv
507
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
6" [150]
Actuator specifications
Actuator Type
Electrical fail-safe
Auxiliary Switches
2 x SPDT
Control Type
MFT/Programmable
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
7 mm hex crank supplied
Power Consumption (Holding)
9 W
Power Consumption (Running)
52 W
Running Time (Fail-safe)
<30 s
Running Time (Motor)
35 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
