B6600S-400+GRX24-3-T N4 | 2 Way CCV | Flanged SS trim 6" | Cv 400 with Non-Spring Return | 360 in-lb | On/Off/Floating | 24V | Belimo

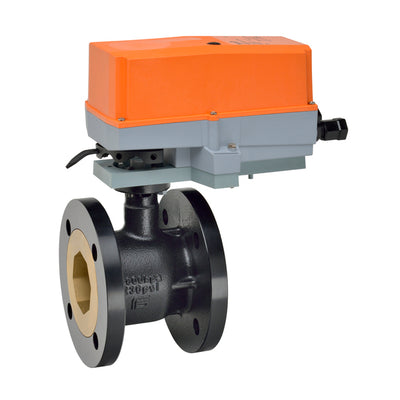

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6600S-400+GRX24-3-T N4
Documents and manuals
Belimo B6600S-400+GRX24-3-T N4 Documents
Overview
Details for B6600S-400+GRX24-3-T N4
2 Way CCV | Flanged SS trim 6" | Cv 400 with Non-Spring Return | 360 in-lb | On/Off/Floating | 24V
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 400
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 4 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
