B6600S-400+GKRX24-MFT N4 | CCV | 6" | 2 Way | 400 Cv | w/ Electronic FS | 24V | MFT | NEMA 4 | Belimo

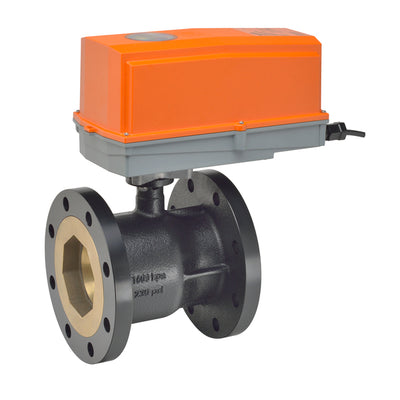

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6600S-400+GKRX24-MFT N4
Documents and manuals
Belimo B6600S-400+GKRX24-MFT N4 Documents
Overview
Details for B6600S-400+GKRX24-MFT N4
CCV | 6" | 2 Way | 400 Cv | w/ Electronic FS | 24V | MFT | NEMA 4
Specifications
- Valve specifications
- Angle of Rotation
- 95
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 400
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 6" [150]
- Actuator specifications
- Actuator Type
- Electrical fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- cable
- Manual Override
- Under cover
- Power Consumption (Holding)
- 3 W
- Power Consumption (Running)
- 12 W
- Running Time (Fail-safe)
- <35 s
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
