B6500S-290-250+GRX24-3 | Characterized Control Valve (CCV) | 5" | 2-way | ANSI Class 250 | Cv 290 | Configurable Valve Actuator | Non fail-safe | AC/DC 24 V | On/Off | Floating point | Belimo

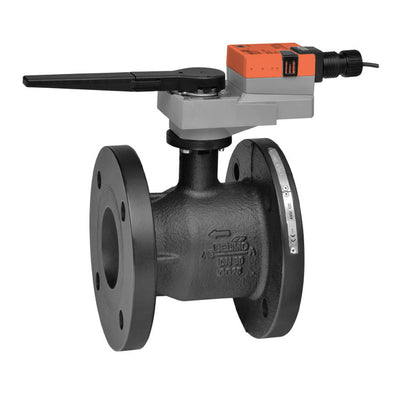

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6500S-290-250+GRX24-3
Documents and manuals
Belimo B6500S-290-250+GRX24-3 Documents
Overview
Details for B6500S-290-250+GRX24-3
Characterized Control Valve (CCV), 5", 2-way, ANSI Class 250, Cv 290 |Configurable Valve Actuator, Non fail-safe, AC/DC 24 V, On/Off, Floating point
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 250
- Controllable Flow Range
- 75B0
- Cv
- 290
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 5" [125]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2 UL Enclosure Type 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 2 W
- Power Consumption (Running)
- 4 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
