B6400S-186+GRX24-MFT-T N4 | CCV | 4" | 2 Way | 186 Cv | w/ Non-Spg | 24V | MFT | NEMA 4 | Belimo

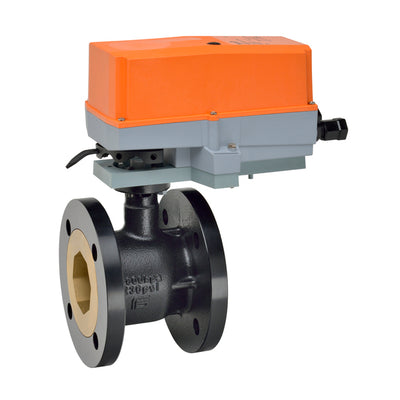

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6400S-186+GRX24-MFT-T N4
Documents and manuals
Belimo B6400S-186+GRX24-MFT-T N4 Documents
Overview
Details for B6400S-186+GRX24-MFT-T N4
CCV | 4" | 2 Way | 186 Cv | w/ Non-Spg | 24V | MFT | NEMA 4
This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 186
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 4" [100]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- MFT/Programmable
- Degree of Protection
- IP66/67 NEMA 4X UL Enclosure Type 4X
- Electrical Connection
- terminals
- Manual Override
- Under cover
- Power Consumption (Holding)
- 2.5 W
- Power Consumption (Running)
- 8 W
- Running Time (Motor)
- 150 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
