B6300VB-207+AMX24-MFT-X1 | VBall Valve | 3
$3,704.40
Brand: BelimoSKU: B6300VB-207+AMX24-MFT-X1
List Price
$8,232.00
$3,704.40
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships via FREIGHT
The product is not cancelable or returnable unless found defective
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

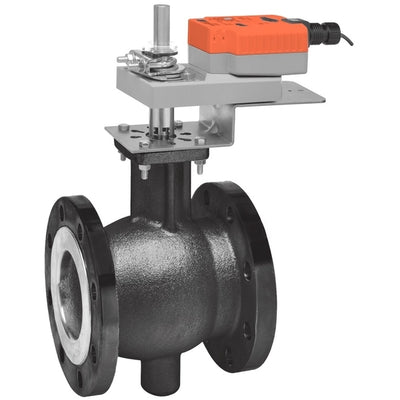

B6300VB-207+AMX24-MFT-X1 | VBall Valve | 3" | 2 Way | 207 Cv | w/ Non-Spg | 24V | MFT | Belimo

Belimo | B6300VB-207+AMX24-MFT-X1
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6300VB-207+AMX24-MFT-X1

Documents and manuals

Belimo B6300VB-207+AMX24-MFT-X1 Documents

Overview

Details for B6300VB-207+AMX24-MFT-X1

VBall Valve | 3" | 2 Way | 207 Cv | w/ Non-Spg | 24V | MFT

Specifications

Valve specifications
Angle of Rotation
95
ANSI Class
150
Controllable Flow Range
75B0
Cv
207
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol steam
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
3" [80]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
