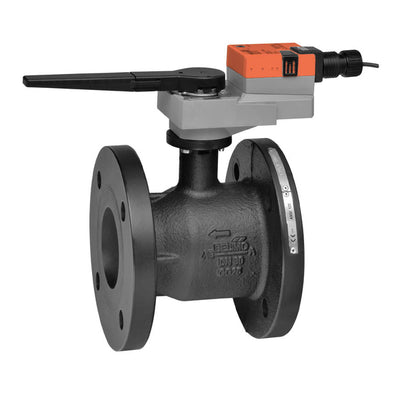

B6250S-110+ARB24-3-5-14 | CCV | 2.5" | 2 Way | 110 Cv | w/ Non-Spg | 24V | Floating | Belimo
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6250S-110+ARB24-3-5-14
Overview
Details for B6250S-110+ARB24-3-5-14
CCV | 2.5" | 2 Way | 110 Cv | w/ Non-Spg | 24V | Floating
Specifications
- Valve specifications
- Angle of Rotation
- 90
- ANSI Class
- 125
- Controllable Flow Range
- 75B0
- Cv
- 110
- End Fitting
- Flange
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 2-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2.5" [65]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- Floating/3-point
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 0.5 W
- Power Consumption (Running)
- 2.5 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
