B6250S-070-250+ARX24-3-T N4 | CCV | 2.5
$2,241.00
Get your Special Pricing!
Log In / Create an Account for the LOWEST PRICING on our most Popular Brands!
Brand: BelimoSKU: B6250S-070-250+ARX24-3-T N4
List Price
$4,980.00
$2,241.00
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
The product is not cancelable or returnable unless found defective
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B6250S-070-250+ARX24-3-T N4 | CCV | 2.5" | 2 Way | 70 Cv | w/Non-Spring | 24V | Floating | NEMA 4 | Belimo

Belimo | B6250S-070-250+ARX24-3-T N4

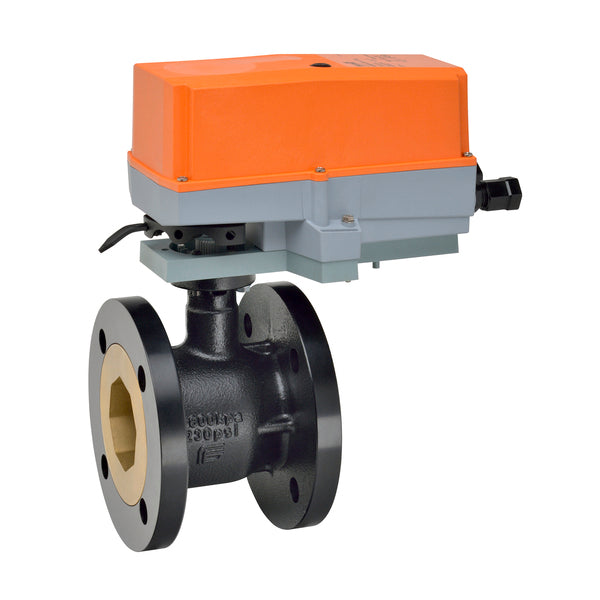

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B6250S-070-250+ARX24-3-T N4

Documents and manuals

Belimo B6250S-070-250+ARX24-3-T N4 Documents

Overview

Details for B6250S-070-250+ARX24-3-T N4

CCV | 2.5" | 2 Way | 70 Cv | w/Non-Spring | 24V | Floating | NEMA 4

Specifications

Valve specifications
Angle of Rotation
90
ANSI Class
250
Controllable Flow Range
75B0
Cv
70
End Fitting
Flange
Fluid
Chilled or hot water up to 60% glycol
Pattern
2-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2.5" [65]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
Floating/3-point
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
0.5 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
