B350+ARX24-PC | CCV | 2" | 3 Way | 57 Cv | w/ Non-Spg | 24V | PC | Belimo (OBSOLETE)

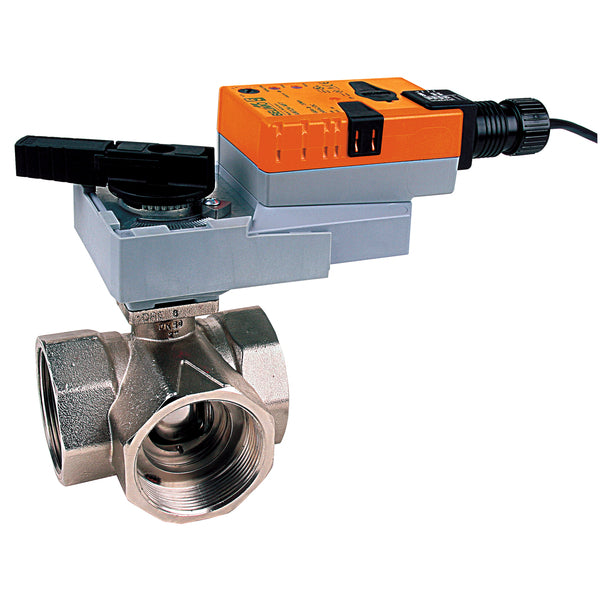

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B350+ARX24-PC
Documents and manuals
Belimo B350+ARX24-PC Documents
Overview
Details for B350+ARX24-PC
DISCONTINUED MODEL, CONTACT TECHNICAL SUPPORT FOR REPLACEMENT OPTIONS
CCV | 2" | 3 Way | 57 Cv | w/ Non-Spg | 24V | PC
Specifications
- Valve specifications
- Angle of Rotation
- 90
- Controllable Flow Range
- 75B0
- Cv
- 57
- End Fitting
- Internal thread
- Fluid
- Chilled or hot water up to 60% glycol
- Pattern
- 3-way
- Pressure Independent
- NO
- Trim
- Stainless steel
- Valve Size
- 2" [50]
- Actuator specifications
- Actuator Type
- Non fail-safe
- Control Type
- DC 0...20 V PhC
- Degree of Protection
- IP54 NEMA 2
- Electrical Connection
- cable
- Manual Override
- External push button
- Power Consumption (Holding)
- 1.3 W
- Power Consumption (Running)
- 3.5 W
- Running Time (Motor)
- 90 s / 90B0
- Voltage AC/DC
- AC/DC 24 V
