B348+ARX24-SR | CCV | 2" | 3 Way | 37 Cv | w/ Non-Spg | 24V | 2-10V | Belimo

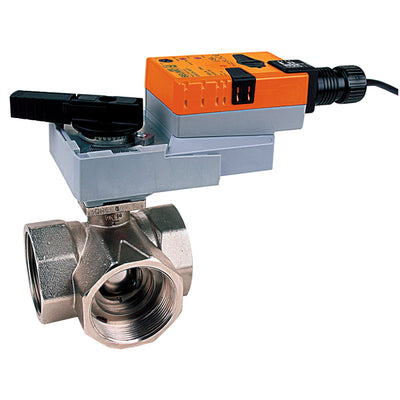

Belimo | B348+ARX24-SR
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B348+ARX24-SR

Documents and manuals

Belimo B348+ARX24-SR Documents

Overview

Details for B348+ARX24-SR

CCV | 2" | 3 Way | 37 Cv | w/ Non-Spg | 24V | 2-10V

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box re-heat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
37
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
2" [50]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP54 NEMA 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
