B339+ARX24-SR-T N4 | CCV | 1.5
$731.25
Brand: BelimoSKU: B339+ARX24-SR-T N4
List Price
$1,625.00
$731.25
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B339+ARX24-SR-T N4 | CCV | 1.5" | 3 Way | 29 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H | Belimo

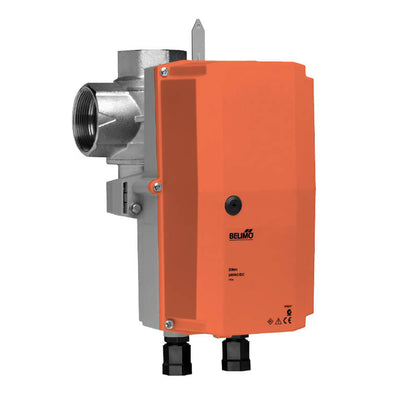

Belimo | B339+ARX24-SR-T N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B339+ARX24-SR-T N4

Documents and manuals

Belimo B339+ARX24-SR-T N4 Documents

Overview

Details for B339+ARX24-SR-T N4

CCV | 1.5" | 3 Way | 29 Cv | w/ Non-Spg | 24V | 2-10V | NEMA 4H

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
29
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
DC 2...10 V
Degree of Protection
IP66/67 NEMA 4X UL Enclosure Type 4X
Electrical Connection
terminals
Manual Override
Under cover
Power Consumption (Holding)
0.4 W
Power Consumption (Running)
2.5 W
Running Time (Motor)
90 s / 90B0
Voltage AC/DC
AC/DC 24 V
