B339+ARX24-MFT | CCV | 1.5
$574.20
Brand: BelimoSKU: B339+ARX24-MFT
List Price
$1,276.00
$574.20
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

B339+ARX24-MFT | CCV | 1.5" | 3 Way | 29 Cv | w/ Non-Spg | 24V | MFT | Belimo

Belimo | B339+ARX24-MFT

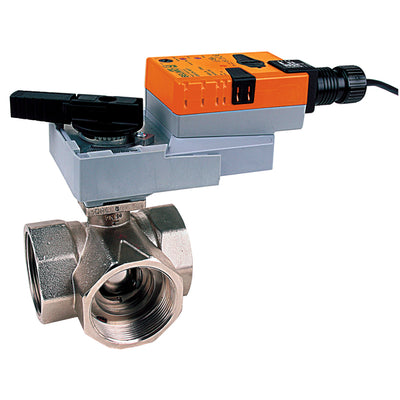

The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B339+ARX24-MFT

Documents and manuals

Belimo B339+ARX24-MFT Documents

Overview

Details for B339+ARX24-MFT

CCV | 1.5" | 3 Way | 29 Cv | w/ Non-Spg | 24V | MFT

This valve is typically used in air handling units on heating or cooling coils, and fan coil unit heating or cooling coils. Some other common applications include Unit Ventilators, VAV box reheat coils and bypass loops. This valve is suitable for use in a hydronic system with variable or constant flow.

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
29
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.5" [40]
Actuator specifications
Actuator Type
Non fail-safe
Control Type
MFT/Programmable
Degree of Protection
IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection
cable
Manual Override
External push button
Power Consumption (Holding)
1.3 W
Power Consumption (Running)
3.5 W
Running Time (Motor)
150 s / 90B0
Voltage AC/DC
AC/DC 24 V
