B330+AFRXUP N4 | Characterized Control Valve (CCV), 1 1/4
$981.45
Brand: BelimoSKU: B330+AFRXUP N4
List Price
$2,181.00
$981.45
Availability: This product is currently available to purchase
Contact us for price breaks on large quantities!
This item ships FREE*
*Free shipping applies within the continental US and weighing less than 50 lbs.
Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

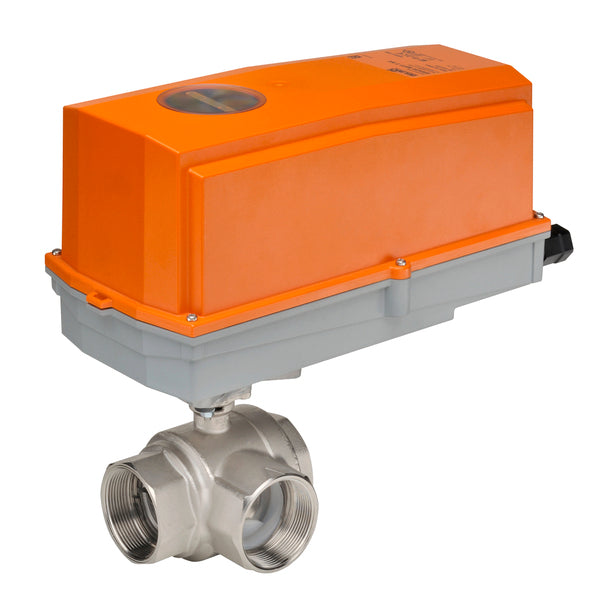

B330+AFRXUP N4 | Characterized Control Valve (CCV), 1 1/4", 3-way | Configurable Valve Actuator, Spring return, AC24-240V / DC24-125V, On/Off, NEMA4X | Belimo | Belimo

Belimo | B330+AFRXUP N4
The photo is for representation purposes only and may not be a photo of product being purchased.
Search products similar to B330+AFRXUP N4

Documents and manuals

Belimo B330+AFRXUP N4 Documents

Overview

Details for B330+AFRXUP N4

Characterized Control Valve (CCV), 1 1/4", 3-way | Configurable Valve Actuator, Spring return, AC24-240V / DC24-125V, On/Off, NEMA4X | Belimo

Specifications

Valve specifications
Angle of Rotation
90
Controllable Flow Range
75B0
Cv
19
End Fitting
Internal thread
Fluid
Chilled or hot water up to 60% glycol
Pattern
3-way
Pressure Independent
NO
Trim
Stainless steel
Valve Size
1.25" [32]
Actuator specifications
Actuator Type
Spring return
Control Type
On/Off
Degree of Protection
IP66 NEMA 4X UL Enclosure Type 4X
Electrical Connection
cable
Manual Override
5 mm hex crank (3/16" Allen) supplied
Power Consumption (Holding)
3.5 W
Power Consumption (Running)
7 W
Running Time (Fail-safe)
<20 s
Running Time (Motor)
75 s / 90B0
Voltage AC/DC
AC 24...240 V / DC 24...125 V
