B322+LRX24-3-S | CCV | 1

$367.20

Brand: BelimoSKU: B322+LRX24-3-S

List Price
~~$816.00~~

$367.20

Availability: This product is currently available to purchase

Contact us for price breaks on large quantities!

This item ships FREE*

*Free shipping applies within the continental US and weighing less than 50 lbs.

Shipping and Returns Terms

Speak With a Technical Expert

Call (847) 773-1023

Hours: 9am - 5pm CDT M-F

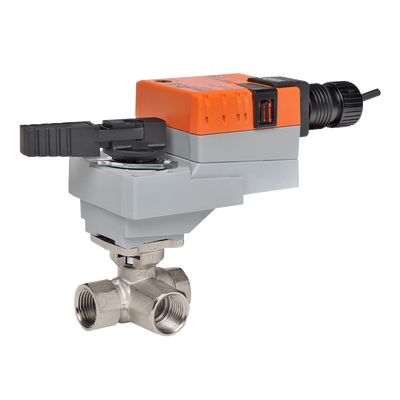

B322+LRX24-3-S | CCV | 1" | 3 Way | 7.4 Cv | w/ Non-Spg | 24V | Floating | SW | Belimo

Belimo | B322+LRX24-3-S

The photo is for representation purposes only and may not be a photo of product being purchased.

Search products similar to B322+LRX24-3-S

Jump to: Documents Overview Specifications Reviews

Documents and manuals

Belimo B322+LRX24-3-S Documents

Datasheet Installation Instructions More Info

Overview

Details for B322+LRX24-3-S

CCV | 1" | 3 Way | 7.4 Cv | w/ Non-Spg | 24V | Floating | SW

Specifications

Valve specifications
Angle of Rotation: 90
Controllable Flow Range: 75B0
Cv: 7.4
End Fitting: Internal thread
Fluid: Chilled or hot water up to 60% glycol
Pattern: 3-way
Pressure Independent: NO
Trim: Stainless steel
Valve Size: 1" [25]
Actuator specifications
Actuator Type: Non fail-safe
Auxiliary Switches: 1 x SPDT
Control Type: Floating/3-point
Degree of Protection: IP54 NEMA 2 UL Enclosure Type 2
Electrical Connection: cable
Manual Override: External push button
Power Consumption (Holding): 0.2 W
Power Consumption (Running): 1.5 W
Running Time (Motor): 90 s / 90B0
Voltage AC/DC: AC/DC 24 V
